Sheet Metal Layers

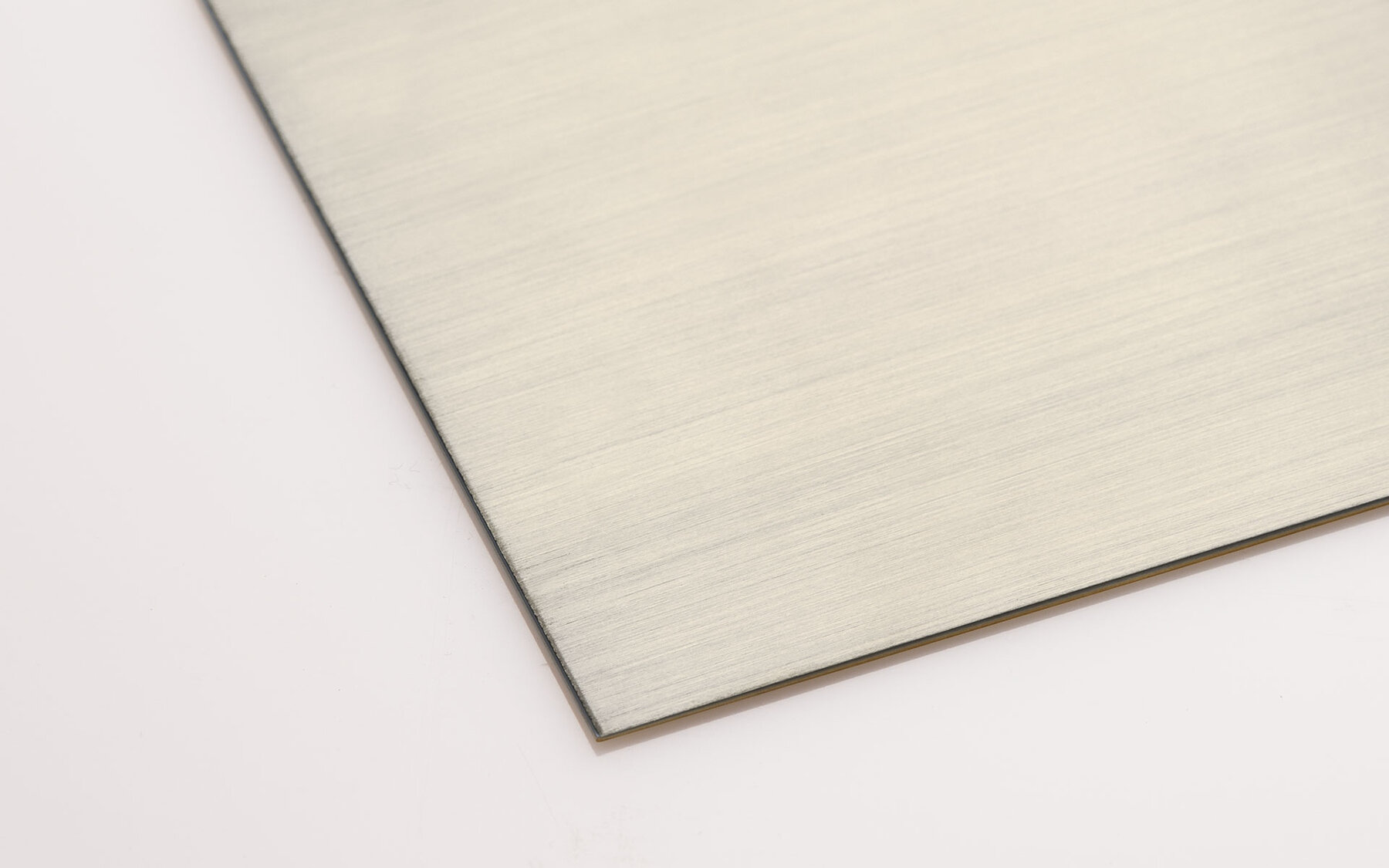

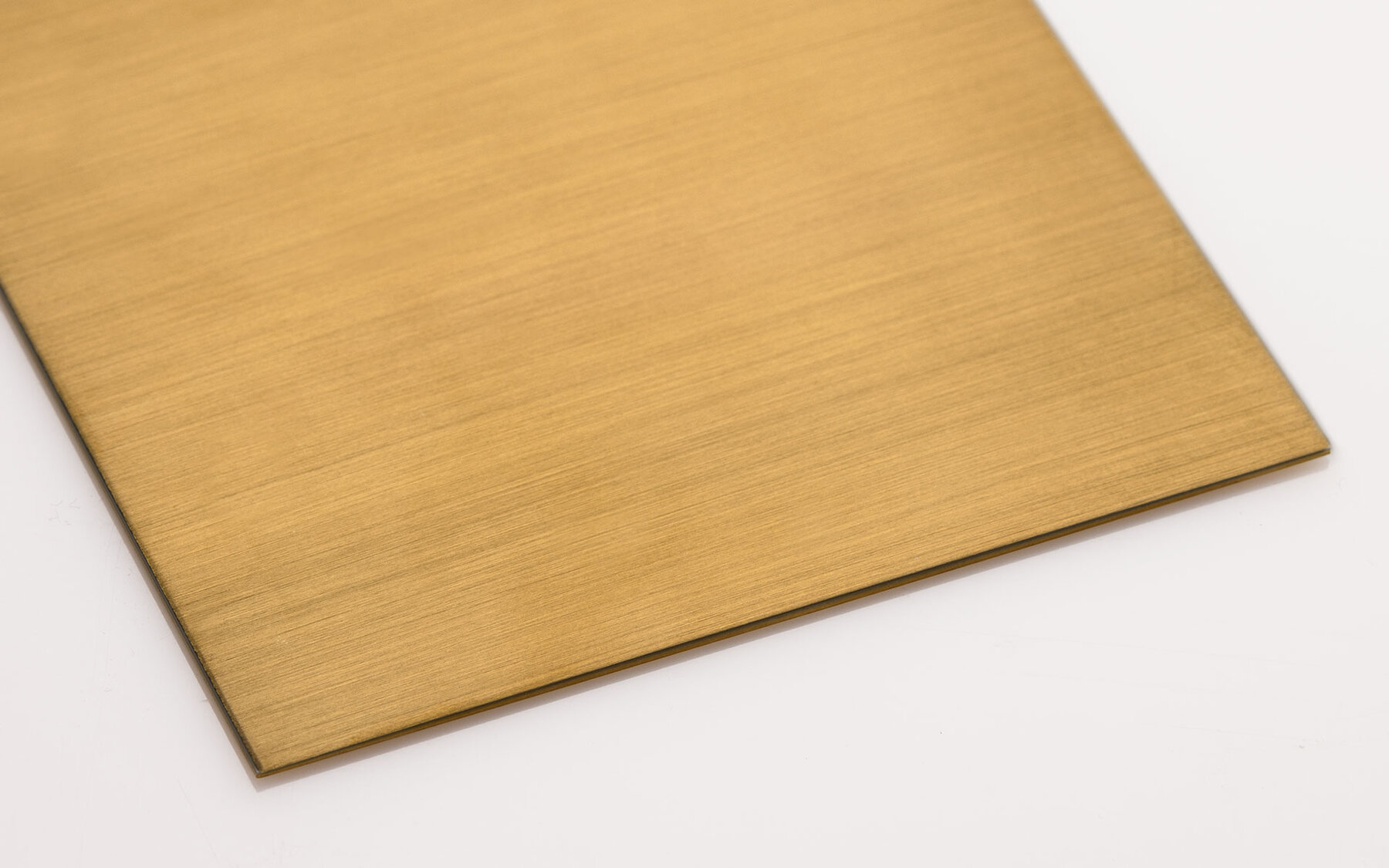

Sheet metal layers – gold on silver for the manufacture of high quality jewellery with two colours.

The sheet metal layers developed by us offer permanent, abrasion-resistant gold plating on a 935 silver base material

The following standard alloys are available at any time:
Alloys

Sheet thickness

(mm)

Sheet width

(mm)

Fine gold content

Gold plating thickness 1mm

Density g/cm3

Hardness of the gold plating HV

750/9350,3 – 37536,4 %~0,36 mm12,3150
900/9350,3 – 39018,4 %~0,13 mm11,480
750rot/93510,3 – 39034,6 %0,1811,2160
